Workmanship of Corrugated Carton Production Line
According to the workmanship of the corrugated carton production line, the line is combined by machines for wet treatment and machines for dry treatment. The wet parts includes mill roll stand, auto splicer, pre-heater, single facer, conveyor bridge, gluing machine and double facer. Wet part’s function is for producing difference flute type corrugated cartons in 3 ply, 5 ply and 7 ply from paper roll. The dry part includes cutting-off machine, NC slitter scorer and stacker, the dry part is for slitting cutting and stacking the corrugated cartons as per order request.
The Advantage of Corrugated Carton Production Line
Now, the corrugated carton production line is an essential machine for the manufactures of corrugated cartons. Now the carton market request is much higher than before, various cartons are needed more and more. For meeting the orders which are more specifications, few quantity, short producing time, we have to update the automation degree of corrugated carton production line to be enhance quality, raise production efficiency, save power and labor, reduce consumption, reduce waste rate, and the dry part of corrugated carton production line is the key for these aim.
Production Process of Corrugated Carton Production Line
The corrugated cartons is made by paper after flute forming, glue pasting, bounding, slitting scoring, cutting off, and final stacking in pile, this is an assembly line. For example the 2 layer production line, normally it is combined by mill roll stand, single facer and slitting cutting machine, the raw material is paper, after forming cutting to be 2 layer corrugated cartons which is in size of order request. The corrugated cartons does not need to be bake to be dry, and if working with laminator, we can produce 3 ply corrugated cartons. Normally the corrugated carton production line in in big length, like 5 ply corrugated carton production line, it has lots of machines, then we need big workshop to install the production line.
Main Machines Introduction of Corrugated Carton Production Line

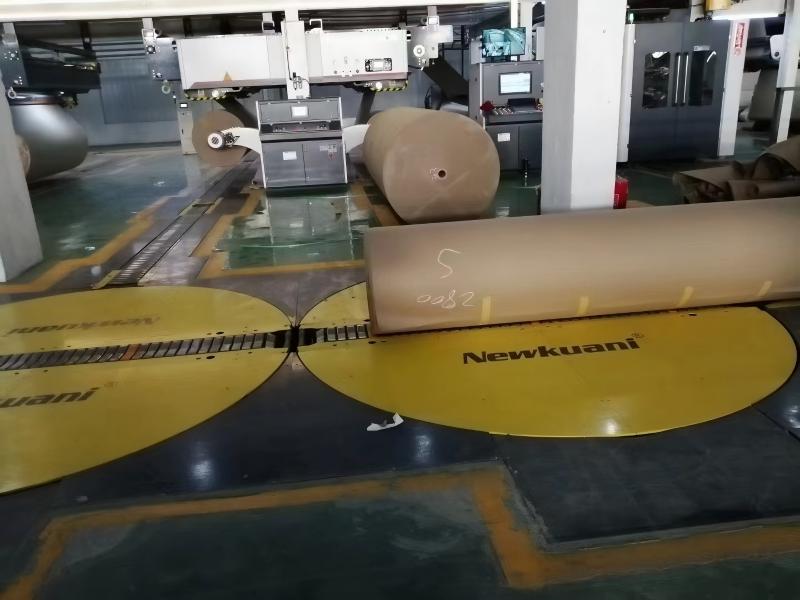

Corrugated carton production line has mill roll stand, pre-heater, single facer, gluing machine, double facer, slitter scorer, cutting off machine, stacker and some core unit of control management system. Each unit work together to be achieve continuous and automated production. The pre-heater is for making sure the paper in good moisture, singel facer for producing 2 layer corrugated cardboard in correct flute, gluing machine controls the glue quantity, the double facer is for dry corrugated cartons and make sure the bounding strength, slitter scorer and cutting off machine to make sure the cutting size in high precision, the whole corrugated carton production line is central controlled by PLC, it can enhance the production stability and all machines work corresponding to each other
What is A Complete Corrugated Carton Production Line

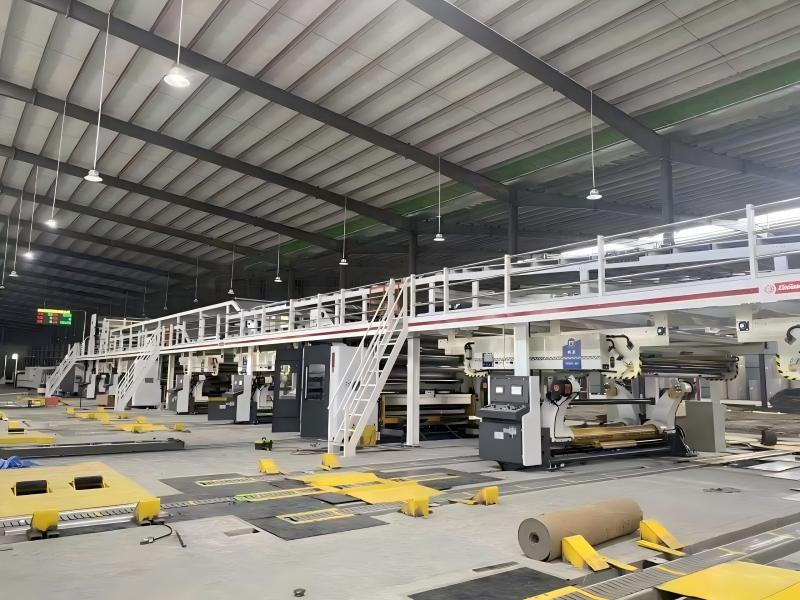

A complete corrugated carton production line includes mill roll stand, pre-heating cylinder, single facer, conveyor bridge, gluing machine, double facer, slitter scorer, cutting off machine, stacking machine and a steam heating system, air compressor system, glue supplying system, electric control system. Also we can equip auto splicer, correction system and production manage system for high speed corrugated carton production line.
