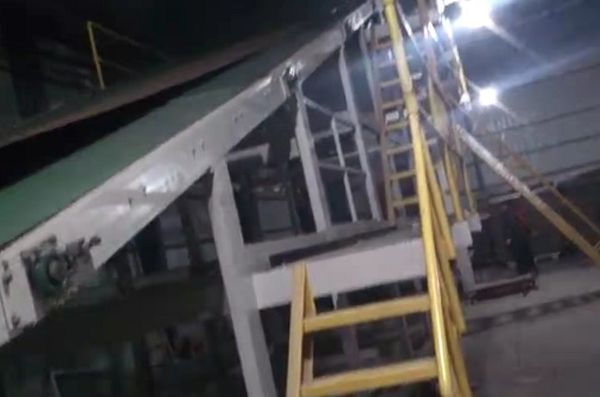

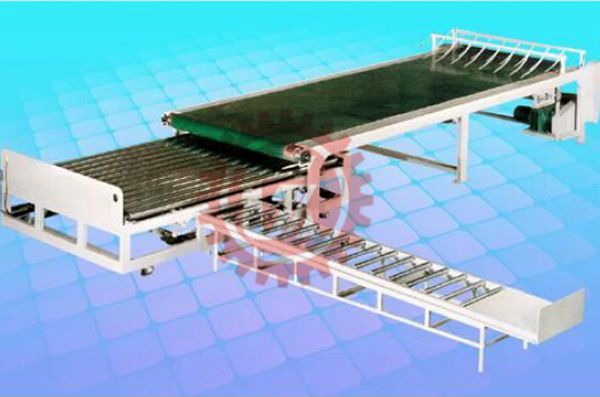

DMT-120 triangle corrugated cardboard stacker
- The triangle corrugated stacker is the simplest stacker. Years ago, it is popular, but now it is only for the lowest corrugated paperboard production line.
Corrugated paperboard stacker
This is the final machine in the complete of corrugated cardboard production line. Normally the machine for collecting products in production line, it is always with highest intelligence in the whole production line. Because this is the part which can save labor cost mostly.
Sure, the corrugated paperboard stacker is the final machine in the corrugated carton production line, its function is for collecting corrugated cardboard for strapping and stock. Always, the stacker has part of logistic function.
A high intelligence corrugated cardboard stacker can work with high speed production line, and has a obvious efficiency on labor cost save.
Difference type of corrugated cardboard stacker
As per difference stacking method, our stacker is mainly classified in 3 types. They are triangle stacker, gangry stacker and lift stacker.
Triangle stacker is an old type of stacker in the corrugated paperboard production line. It was adopted in difference model of corrugated carton production line years ago. But now, it is only for the economic type production line which is in speed 120m/minute. This stacker is in simple design. Just after the cardboard come out from cutting off machine, the cardboard will be piled on the stacker easily, then it pass to the cross section and go to workers for packing.

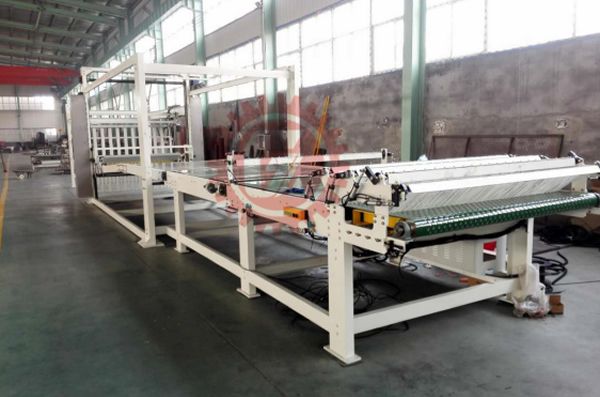

Gantry stacker, we have two types of this stacker. They are big gantry and small gantry stacker. Both of them are computerized control. The running speed is from 200m-350m/minute in difference models. The main difference between the big gantry and small gantry stacker is the piling height. The small gantry stacker piling height is 250mm only, and the big gantry stacker piling height is 1700mm. So the small gantry stacker is a better choice for the carton factories which produce corrugated cardboard for themselves, no selling. And the big gantry stacker is suit to the carton factories who not only produce corrugated cardboard for themselves, they also sell corrugated cardboard to other factories.

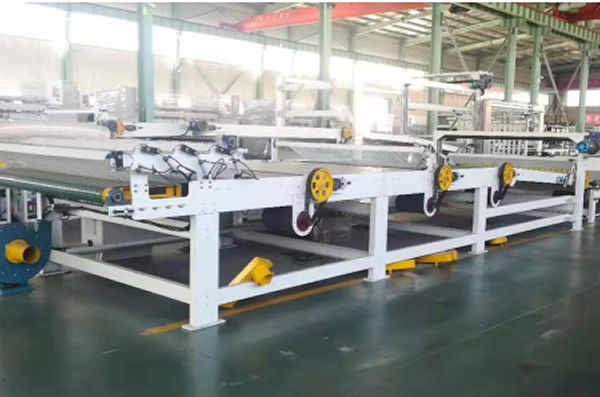

Lift stacker, this is another type of stacking machine. Its stacking height also can be 1700mm. But it has a stacking part looks like a basket. Then the corrugated cardboard pass to the basket by delivery part of the stacker, and pilling on the basket. The basket bottom will be down as per the quantity of corrugated cardboard pilling to finish the corrugated cardboard collecting.
Difference design of corrugated cardboard staker

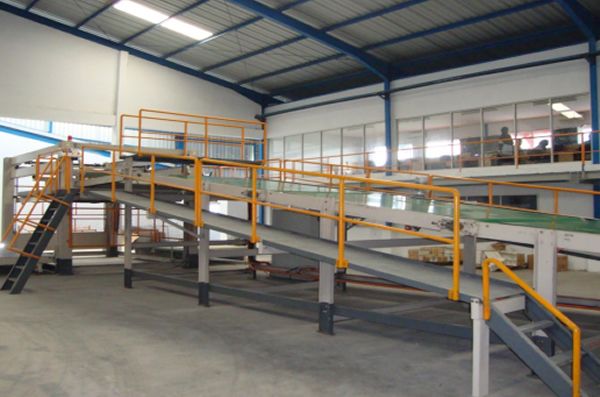

As we know, cutting off machine has single layer and double layer design. Then the stacker is the machine which connect to the cutting off machine, the corrugated cardboard will go to the stacker directly from the cutting off machine. Then the stacker has to be have single layer and double layer design too.
Each type of our stacker has single layer and double layer to meet the difference request of corrugated cardboard production line. Some time, the double layers are same model of stacker, but some time the double layers is in difference model.
For example, t he gantry stacker, we have two type, big gantry and small gantry, then we design double layer gantry stacker, we normally adopt upper layer is big gantry stacker, and the lower layer is small gantry.
Logistic system work with stacker
Now more and more carton factories prefer logistic system work with our corrugated cardboard production line for saving labor cost, because now the marketing competition is so fierce. Though the logistic system is high cost even higher price the our corrugated cardboard production line, they are still buy the logistic system.
Sure, our production line can work with the logistic system. For feeding material logistic system, it is easy for us to design, because it works with mill roll stands. But for delivery logistic system, it works with the stacker, it is difficult for us to design without any knowledge of the layout of workshop. If you want us to offer suggestion and design for logistic system. We have to know your workshop layout. Then we can know where is the stock place, where is the place for carton outputing.
